ACM / ALUMINUM COMPOSITE MATERIAL PANELS
Build with quality. Build with less cost. Build with Reliability with the world’s most trusted ACM panels.
Superior Quality, Solid Reliability, and Significant Savings for ACM Panels & ACM Panel Fabrication in Toronto & GTA
Aluminum Composite Material (ACM) panels are ideal for anyone seeking dimensional stability, a sleek appearance, low weight, and low maintenance.
Profelez is the authorized distributor of AluBond® ACMs in Ontario.
AluBond® is a top-tier global brand known for its Metal Composite Material (MCM), which is rigorously tested to fulfill demanding building code standards.
We primarily use AluBond® to fabricate aluminum composite material panel systems. We can also fabricate panels using your brand of choice, including Alpolic, Alucobond, and Alfrex.
ACM panels are a cost-effective solution for creating spectacular building facades. They have become increasingly popular among architects and builders.
At Profelez, we have a well-stocked inventory of ACMs, cutting-edge production equipment, and an expert team.
From design to fabrication, we ensure that your project meets your requirements and is completed on time, on budget, and without any hassles.

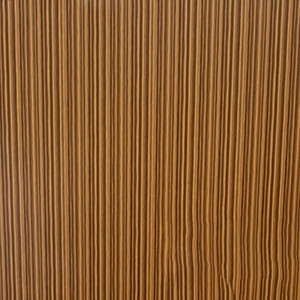

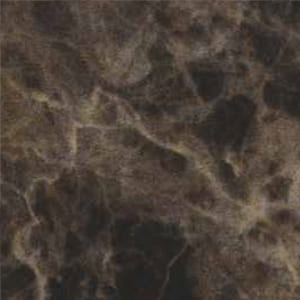

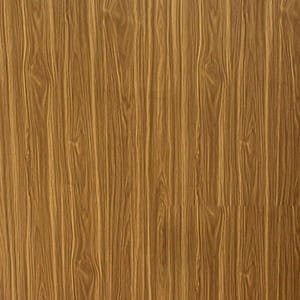

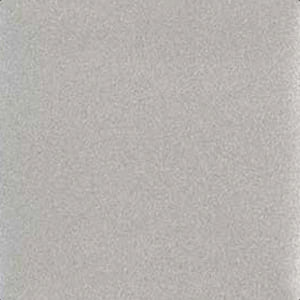

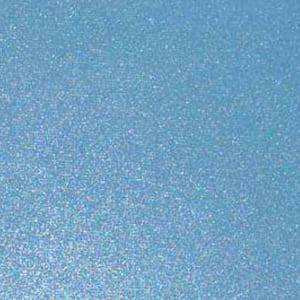

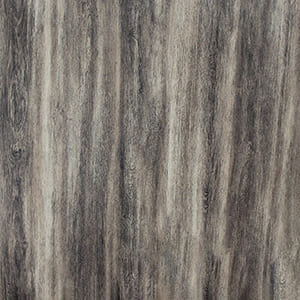

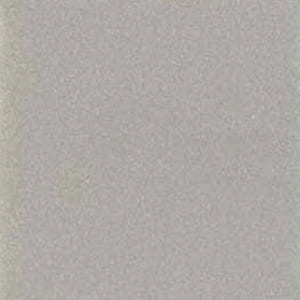

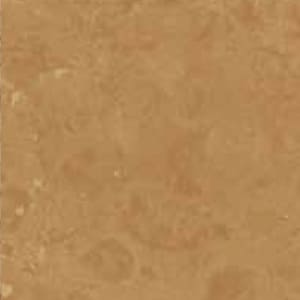

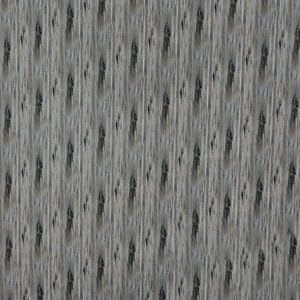

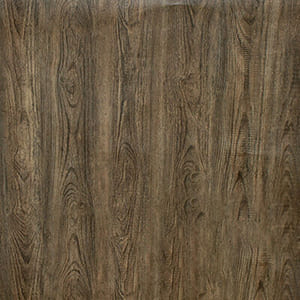

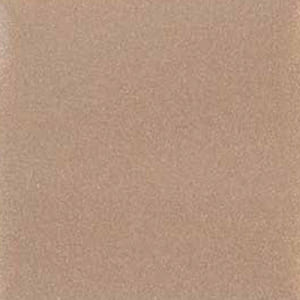

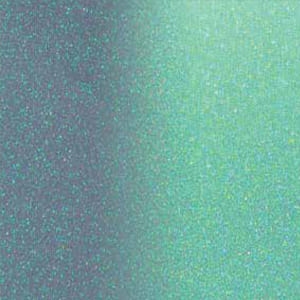

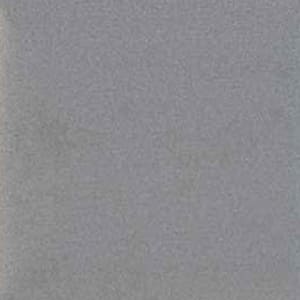

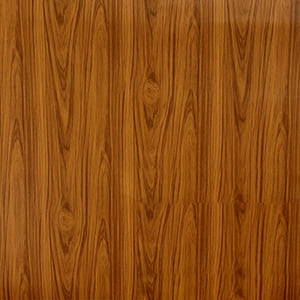

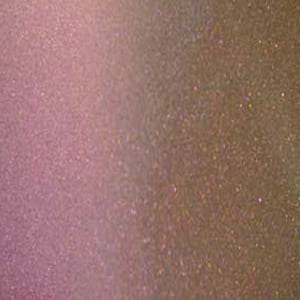

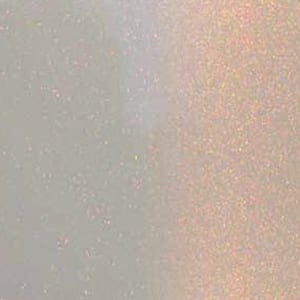

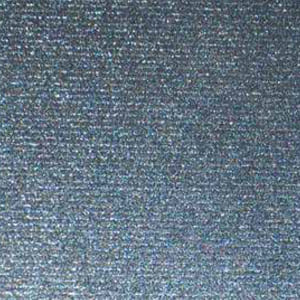

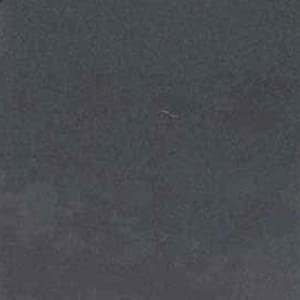

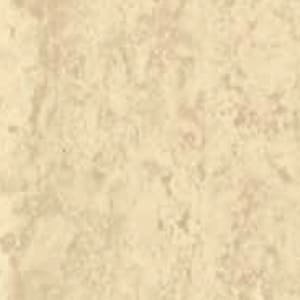

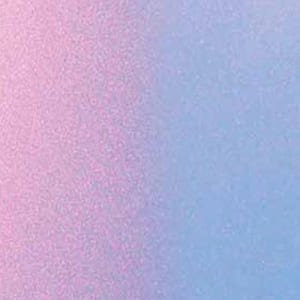

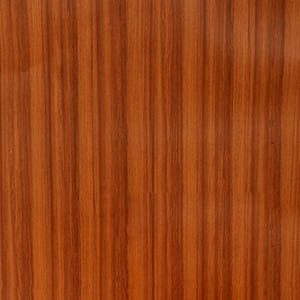

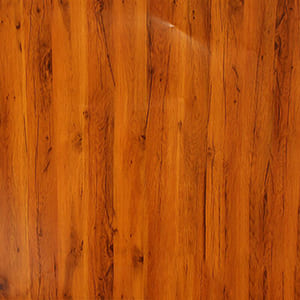

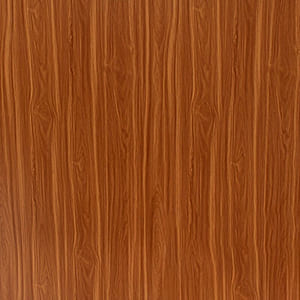

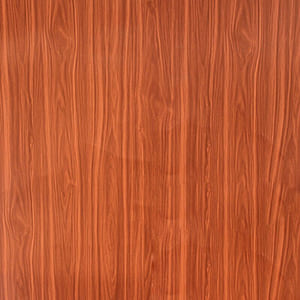

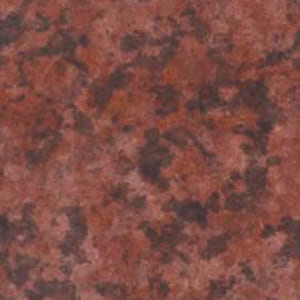

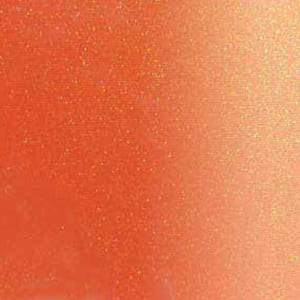

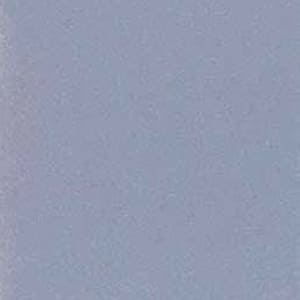

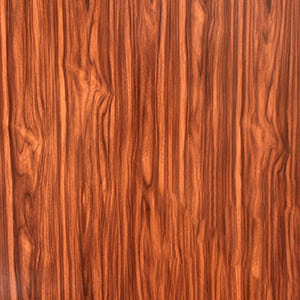

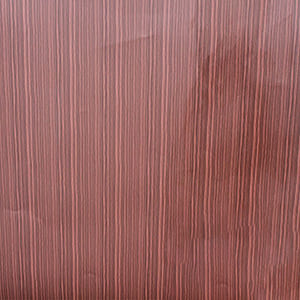

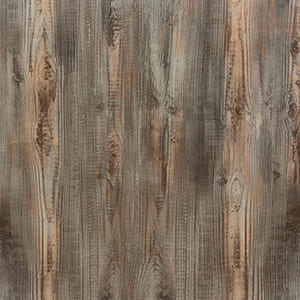

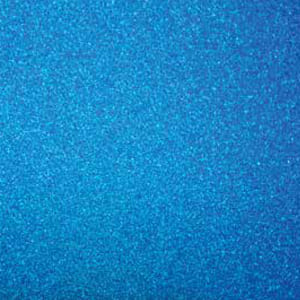

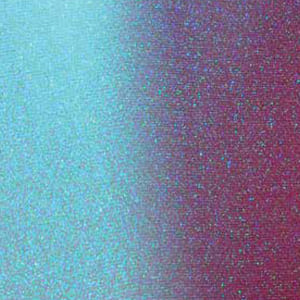

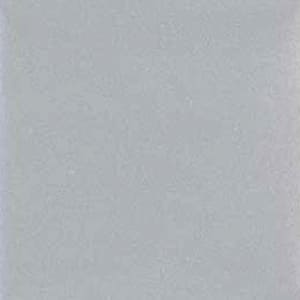

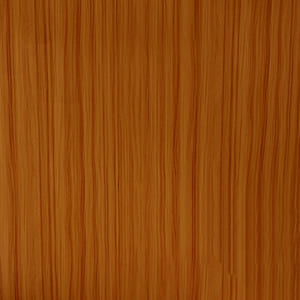

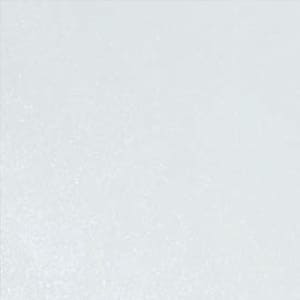

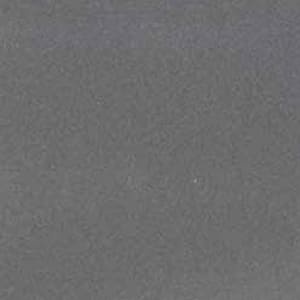

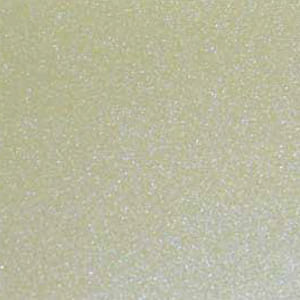

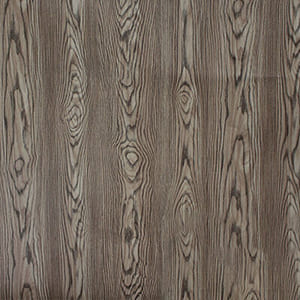

ALUBOND ACM COLORS & TEXTURES
WE CAN MATCH ANY COLOR AT NO EXTRA CHARGE, FOR ORDERS OF 3,500 sq. ft. and up
ALUBOND FR-A2 ACM PANEL TECHNICAL SPECIFICATIONS
No. | CHARACTERISTIC | STANDARD | UNIT/REF | 3MM | 4MM * | 6MM |
PRINCIPAL PROPERTIES | ||||||
| 1 | Skin thickness | …. | mm | 0.5mm | ||
| 2 | Weight | …. | ±0.5 Kg/m2 | 6.2 | 8.0 | 11.6 |
| 3 | Standard Width | ….. | mm | 1000, 1250, 1500 | ||
PRODUCT TOLERANCES | ||||||
| 4 | Width | ….. | mm | ±2 | ||
| 5 | Length | …. | mm | ±3 | ||
| 6 | Thickness | ….. | mm | ±0.2 | ± 0.3 | |
| 7 | Squareness | ….. | mm | Max 5 | ||
| 8 | Bow | ….. | % | ±0.5 | ||
MECHANICAL PROPERTIES | ||||||
| 9 | Tensile strength | ASTM E8 | MPa or N/mm2 | 56 | 43 | 25 |
| 10 | 0.2% proof stress | ASTM E8 | MPa or N/mm2 | 47 | 41 | 22 |
| 11 | Elongation | ASTM E8 | %. | 4.8 | 3.8 | 2 |
| 12 | Flexural elasticity, E | ASTM C 393 | GPa or kN/mm2 | 45 | 38.5 | 26 |
| 13 | Flexural rigidity, E×I, | ASTM C 393 | kNmm2/mm | 110 | 203 | 395 |
ACOUSTICAL PROPERTIES | ||||||
| 14 | Sound Transmission Loss | ASTM E413 | dB | 26 | 27 | |
| 15 | Sound absorption factor | ISO 354 | .. | 0.05 | ||
THERMAL PROPERTIES | ||||||
| 16 | Deflection Temperature | ASTM D 648 | °C | 110 | ||
| 17 | Thermal resistance R | ASTM C518 | M2K/W | 0.031 | ||
| 18 | Temperature resistance | °C | _50….+80 | |||
| 19 | Linear Thermal Expansion | EN 1999 1-1 | mm/m @100°C | 2.4 | ||
CORE FIRE PERFORMANCE | ||||||
| 20 | Core | ….. | ……. | Excellent performance Non-Combustible Mineral filled core | ||
| 21 | Reaction to fire | EN 13501-1 | TBW 0300154 & TBW 0300126.2 | A2, s1, d0 | ||
| 22 | Surface Burning Characteristics | ASTM E84 | Class A/ Class 1 | |||
| 23 | Self-Ignition Temp | ASTM D 1929 | Not Less than 343t8C | |||
| 24 | Exterior Non-Load Bearing Wall Assembly | NFPA 285 | TBW 0300155& TBW 0300156 & TBW 0300137.2 | …… | Passed Various Assembly Tests (Listings Reference: MH-ATD-001 & MH-AED 003&MH-AED-004 Rev 0) | …. |
| 25 | Fire Rating | ASTM E119 | TBW0200165 | …. | 3 hrs. (Listing Reference: MH-AED-3HR-006 Rev0) | …. |
COATING PERFORMANCE | ||||||
| 26 | No. of Coats | AAMA 2605-13 | …… | standard 2 Coat / 3 Coat/ 4 Coat | ||
| 27 | Type/finish | …… | standard PVDF / FEVE / HDPE | |||
| 28 | Gloss @60°c | % | 20-40 / 20-80 | |||
| 29 | Adhesion (Dry Condition) | …. | No adhesion loss | |||
| 30 | Pencil hardness | …… | min HB | |||
ALUBOND FR-A2 ACM PANEL FIRE-RESISTANT CORE
Alubond-Stone (FR-A2) are exterior fire retardant panels featuring over 90% stone core sandwiched between two metal skins. Alubond-Stone (FR-A2) uses a patented core formulation enriched with a high percentage of Magnesium Hydroxide to offer superior fire retardant capabilities, making it an exceptionally safe cladding solution for buildings worldwide. Alubond-Stone (FR-A2) has passed stringent fire tests worldwide, achieving classifications such as EN 13501-1 B S1 D0 (over 90% stone core content) and EN 13501-1 B s1 d0 (over 70% stone core content).
- Advantages of Magnesium Hydroxide:
- Acts as a filler and flame retardant/smoke suppressant
- Environmentally friendly
- Halogen-free
- Non-corrosive
- Reduces smoke density
- Non-volatile
- Largely inert
- Thermally stable up to 340°C, thereafter undergoing endothermic decomposition and releasing water
Magnesium hydroxide, Mg(OH)₂, commonly forms in various geological settings, including as an alteration product of periclase in marble, in low-temperature hydrothermal veins within metamorphosed limestones and chlorite schists, and during the serpentinization of dunites. It frequently occurs alongside minerals like serpentine, calcite, aragonite, dolomite, magnesite, hydromagnesite, artinite, talc, and chrysotile.
ALUBOND ACM PANEL BURN TEST
Aluminum Composite Panels Benefits and Advantages
- Lightweight: ACM has an exceptional strength-to-weight ratio, making it ideal for various applications without adding significant weight to the structure.
- Cost-Effective: ACM panels are a low-cost option for building claddings, offering an excellent balance between quality and affordability.
- Fire Performance: While aluminum is non-combustible, the fire performance of ACM panels depends on the core material used. Panels with a fire-retardant (FR) core are available for applications requiring enhanced fire resistance.
- Flexible Design: ACM can be used around curves and corners and for unusually shaped facades, providing architects and designers with creative freedom.
- Durability: ACM panels are incredibly strong and can withstand harsh weather conditions, making them suitable for long-term exterior use.
- Aesthetic Variety: A large selection of colors and finishes, including metallic, wood, stone, sparkle & prismatic finishes, allows for complete customization of building exteriors.
- Low Maintenance: The panels require minimal maintenance due to their durable PVDF coating, which offers excellent resistance to weathering, corrosion, and UV radiation.
- Sound Insulation: Although not specifically designed for sound insulation, ACM panels can contribute to a building’s overall sound insulation properties due to their layered composition.
- Energy Efficiency: ACM panels can contribute to a building’s energy efficiency by minimizing heat infiltration, which can reduce heating and cooling demands.
- Ease of Installation: ACM panels feature easy installation and fabrication methods, allowing for efficient construction processes and the ability to create complex architectural designs.
ACM PANEL APPLICATIONS
Beyond general cladding applications, ACM panels are exceptionally versatile, making them suitable for a wide range of architectural uses, such as:
- Interior applications: ACM panels add a modern, sleek appearance to walls, partitions, and ceilings, benefiting from their aesthetic versatility and durability.
- Flat, Curved, Sloped, or Vertical Surfaces: This point nicely captures the flexibility of ACM panels. Their ability to be fabricated into various shapes makes them ideal for creative architectural designs, including complex geometries.
- Column Covers: ACM panels are simple to shape and install, resulting in a smooth and uniform appearance that blends well with the building’s facade.
- Canopies: ACM is a great material for canopies as it is lightweight and durable. It enhances the overall look of the entrance or outdoor space while offering protection from the elements.
- Soffits: ACM is ideal for soffits as it provides unmatched durability and low maintenance. Its ability to seamlessly match or complement the exterior cladding of buildings makes it a superior option for covering the underside of roofs.
- Signage: ACM panels are the ultimate choice for signage, thanks to their unbeatable durability, extensive range of finishes, and unmatched long-lasting visual impact, whether used indoors or outdoors.
- Roof Edges: ACM panels are the ideal solution for finishing roof edges. They provide a sleek, modern appearance that complements the building’s overall exterior design and offers superior weather protection.
